Notes
The genotyping protocol(s) presented here have been optimized for reagents and conditions used by The Jackson Laboratory (JAX).
To genotype animals, JAX recommends researchers validate the assay independently upon receipt of animals into their facility.
Reaction cycling temperature and times may require additional optimization based on the specific genotyping reagents used.

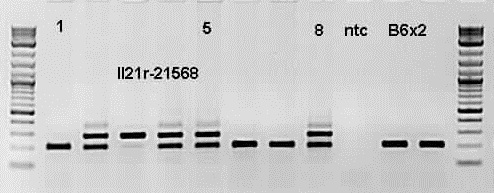

Expected Results
Mutant = 283 bp
Heterozygote = 204 bp and 283 bp
Wild type = 204 bp
Sequence
Mutant sequence data, including junction:
CATGGGAAGGAAGTCATACCCTTGGTCTAACCTCCATTCCTCTTTGTGCAAGACTCTTACT
CAGGTCATGAACCCTCAGTAGGCTGGAGGAGAAGGGAGGTGGAGATAGAGAAGCCAGAAT
TCgatatcaagcttatcgataccgtcgactctagataacttcgtatagcatacattatacgaagttatattgctagagtcagct
tctgatggaattagaacttggcaaaacaatactgagaatgaagtgtatgtggaacagaggctgctgatctcgttcttcaggc
tatgaaactgacacatttggaaaccacagtacttagaaccacaaagtgggaatcaagagaaaaacaatgatcccacgaga
gatctatagatctatagatcatgagtgggaggaatgagctggcccttaatttggttttgcttgtttaaattatgatatccaacta
tga
JAX Protocol
Protocol Primers
| Primer | 5' Label | Sequence 5' → 3' | 3' Label | Primer Type | Reaction | Note |
|---|---|---|---|---|---|---|
| 19024 | GGA AGG AAG TCA TAC CCT TGG | Common | A | |||
| 19025 | TTC TGG ACT CTT GGC TTT GG | Wild type Reverse | A | |||
| oIMR8444 | GCC TGA AGA ACG AGA TCA GC | Mutant Reverse | A |
Reaction A
| Component | Final Concentration |
|---|---|
| ddH2O | |
| Kapa 2G HS buffer | 1.30 X |
| MgCl2 | 2.60 mM |
| dNTP KAPA | 0.26 mM |
| 19024 | 0.50 uM |
| 19025 | 0.50 uM |
| oIMR8444 | 0.50 uM |
| Glycerol | 6.50 % |
| Dye | 1.00 X |
| Kapa 2G HS taq polym | 0.03 U/ul |
| DNA |
Cycling
| Step | Temp °C | Time | Note |
|---|---|---|---|
| 1 | 94.0 | -- | |
| 2 | 94.0 | -- | |
| 3 | 65.0 | -- | -0.5 C per cycle decrease |
| 4 | 68.0 | -- | |
| 5 | -- | repeat steps 2-4 for 10 cycles (Touchdown) | |
| 6 | 94.0 | -- | |
| 7 | 60.0 | -- | |
| 8 | 72.0 | -- | |
| 9 | -- | repeat steps 6-8 for 28 cycles | |
| 10 | 72.0 | -- | |
| 11 | 10.0 | -- | hold |
JAX uses a very high speed Taq (~1000 bp/sec), use cycling times recommended for your reagents.
JAX uses a 'touchdown' cycling protocol and therefore has not calculated the optimal annealing temperature for each set of primers.
